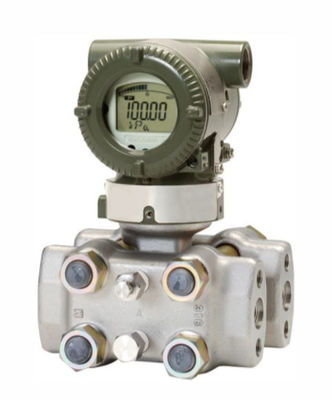

EJA130E-FMS5G-919DB Yokogawa EJA130E Differential Pressure Transmitter

EJA130E-FMS5G-919DB Yokogawa EJA130E Differential Pressure Transmitter

Description:

Manufacturer : Yokogawa
Product No. : EJA130E-FMS5G-919DB/X2/D4/M01/T09/KS26
Product type : Differential Pressure Transmitter
Measurement span (capsule) : M = 1 to 100 kPa (4 to 400 inH2O)
Wetted parts material *2 : S = Cover flange F316 SST, Process connector ASTM CF-8M *1, Capsule Hastelloy C-276 *2 (Diaphragm) F316L SST, 316L SST (Others), Capsule gasket Teflon-coated 316L SST, Vent/Drain plug 316 SST
Process connections : 5 = Without process connector (1/4 NPT female on the cover flanges)
Installation : 9 = Horizontal piping and left side high pressure
Amplifier housing : 2 = ASTM CF-8M stainless steel*5
Electrical connection : 4 = M20 female, two electrical connections without blind plugsIntegral indicator : D = Digital indicator*7
Mounting bracket : N = None
Shipping Weight : 10Kg

The EJA130E is designed to measure accurately, transmit quickly, and do it reliably over time.

Accurately: ± 0.055% Accuracy
Reliably: ± 0.1% Stability per 10 years
Quickly: 150 ms Response Time.
